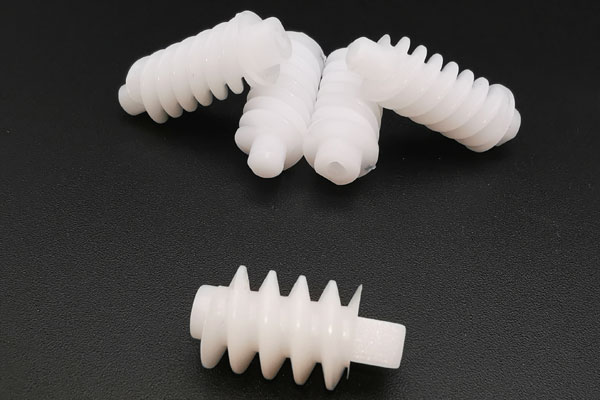

Worm of Car Door Latch Actuator
The worm is of high tolerance molded with PA66 and used in a car door locker.
Our experienced molding operators and stable presses bring success to the special usage purpose.

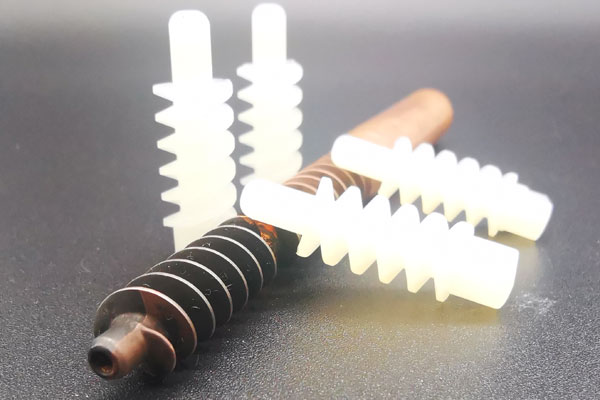

Precision machining of electrode and EDM for the cavity inserts are the assurance of function.
>>Plastic: Zytel 135F - PA66
>>Shrinkage: 1.3%
>>Color: natural
>>Worm Size: diameter 35 by 10.5mm length
>>Gating Type: cold runner to tunnel gate
>>Injection Machine: 100Ton
>>Roughness: Rz=0.4
>>Steel: 1.2083 502Hrc for core and cavity, 1.2312 for A and B plates, 1.1730 for other plates
>>Mould Standard: Meusburger Copied
>>Usage: in the assembly of a car door latch actuator
>>Mould Cavities: 4
>>Mold Weight: 206KG including wooden box
>>Lead Time: 30 days after approval of mold DFM and drawing
>>More to know? Contact us, please.
