Smart Floor Cleaner Robot Gearbox

Smart Floor Cleaner Robot Gearbox


Product Category: GEARBOX SOLUTIONS

(4.5 reviews)

We customize the two side wheels gearbox for a famous client, they are assembled into s hot selling home floor cleaning robot.

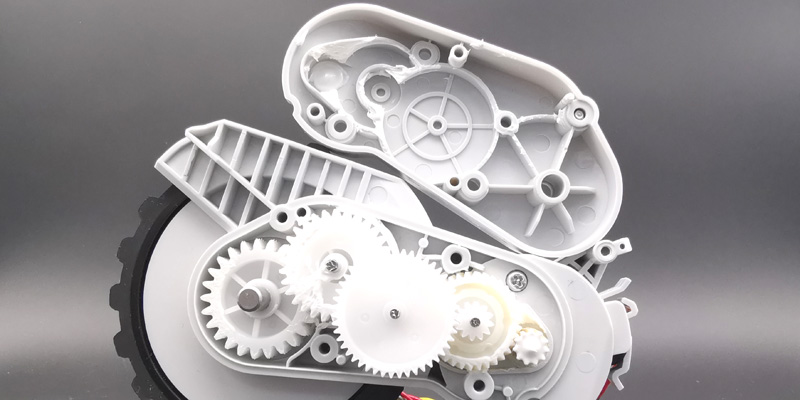

floor-sweeper-robot-gearbox

COMPOSED OF
>> Plastic Covers Knit
>> Speed Transfer Gear Unit, gear unit, gear knit
>> Planetary Reducer Motor
>> PBC Electric Board

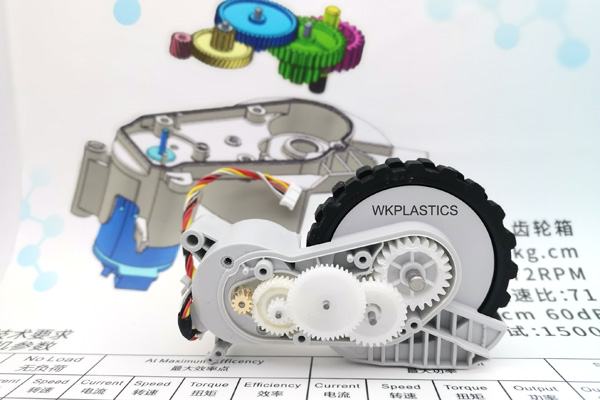

floor-cleaning-robot-gearbox wkplastics
FEATURED WITH
>>Speed Reducing Ratio: 71, a wide range is in availability
>>Output Rotational Speed: 72RPM with high transmission power
>>Output Torque:3.1kg.cm at smooth running
>>Decibel Value: 60dB at 30cm distance with low noise and small size
>>Longevity Testing: 1500H in compact structure and high bearing capacity
SPECIFICATIONS

  No Load At Maximum Efficiency At Maximum Output Stall
Current Speed Current Speed Torque Efficiency Current Speed Torque Output Current Torque
V A rpm A rpm g.cm % A rpm g.cm W A g.cm
12.0 0.102 6386 0.409 5111 55.4 59.2 0.870 3193 138.8 4.55 1.639 227.6

The above floor cleaning robot knit is customized for a specific client and is only shown here as an example.
WKPLASTICS can design, develop, and manufacture gearboxes in accordanace to each client's requirements and specifications.
Any consulting? Let us know, please.
